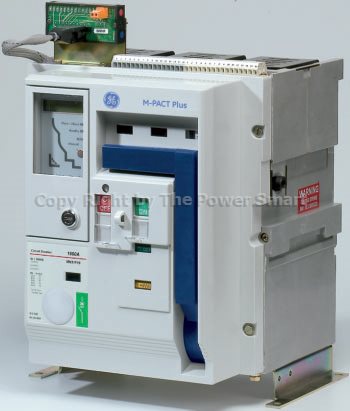

GE M-PACT Air Circuit Breaker up to 6300A

All M-PACT Plus fi xed pattern air circuit breakers incorporate

a stored energy mechanism. The spring can be charged

either manually or electrically via a motor operator that is

automatically activated after the closing operation.

IP43 front panel and door escutcheon seals are standard

features with IP20 protected secondary isolating contacts.

For enhanced protection, an optional IP54 door panel is also

available.

• Trip-free operating mechanism

• Positive 'ON/OFF' contact indication

• Mechanical/electrical anti-pumping device

• Charging spring status indication (optional)

• Ergonomic manual spring charging handle

• Field-mountable range of accessories

• Auxiliary switches 5 NO and 3 NC, 10A 250V (standard)

• Mechanical trip alarm switch (1NO) (optional)

• Padlockable push-button cover

• Mechanical cable interlocking (optional)

• Termination: rear, horizontal or front access (optional)

• Electrical clearances according to IEC 60947-2

• Front access of secondary terminals for simple connection
