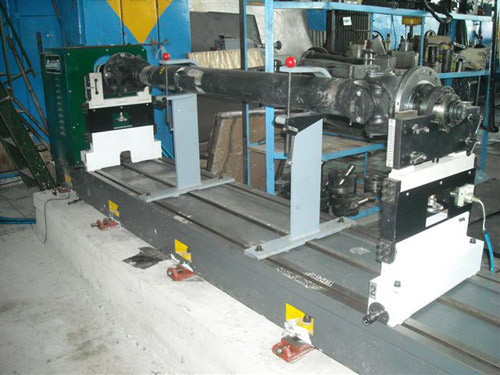

Horizontal Hard-Bearing Balancing Machines
Ideally suited for production balancing
Can handle excessive initial unbalance
First-run readout, no trial weights required
Rigid construction, fewer moving parts
Automatic additional turn of a rotor on a required angle

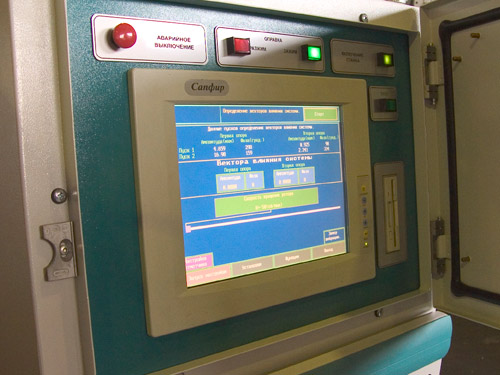

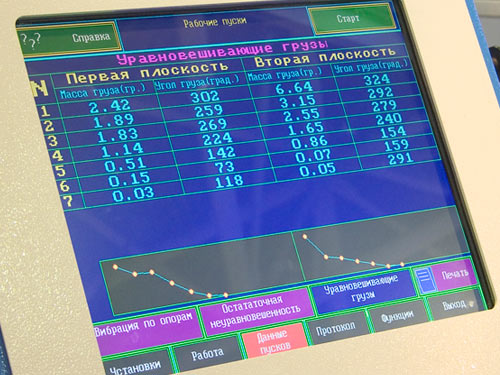

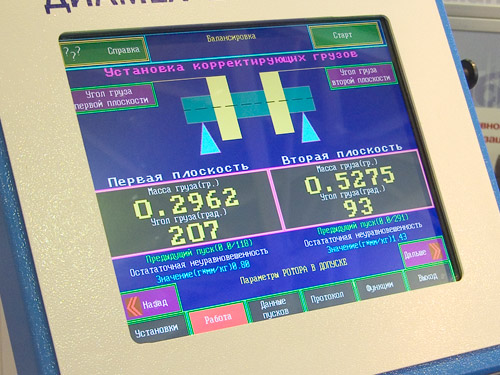

Touch screen balancing computer, with all accessories needed for balancing
Universal balancing machines for rotors with masses up to 3 tons.
Universal balancing machines for rotors with masses up to 3 tons.
Standard Specification BT-150 BT-300
Maximum weight capacity, kg 150 300
Max. rotor diameter, mm 1050 1130
Distance between the centers of rotor bearing journals, mm
150 - 2200 200 - 2400
Shaft journal diameter range, mm 10 - 180 10 - 180
Sensitivity, g?mm/kg 0.1
Drive motor AC 1.1 kW AC 2.2 kW
Drive type Belt
Standard base length, mm 2500 3000
Specifications are for standard machines; modifications are available to meet specific requirements
